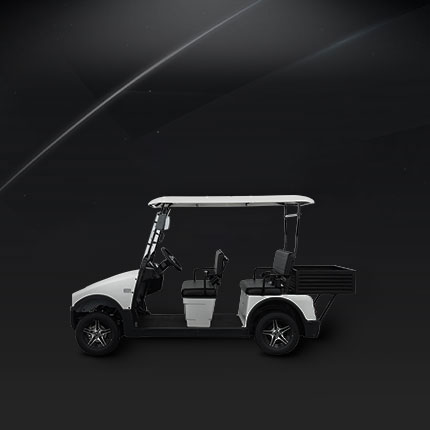

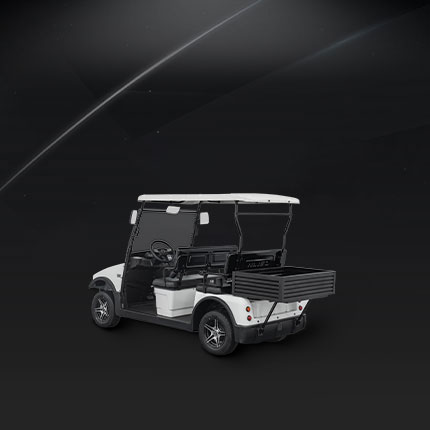

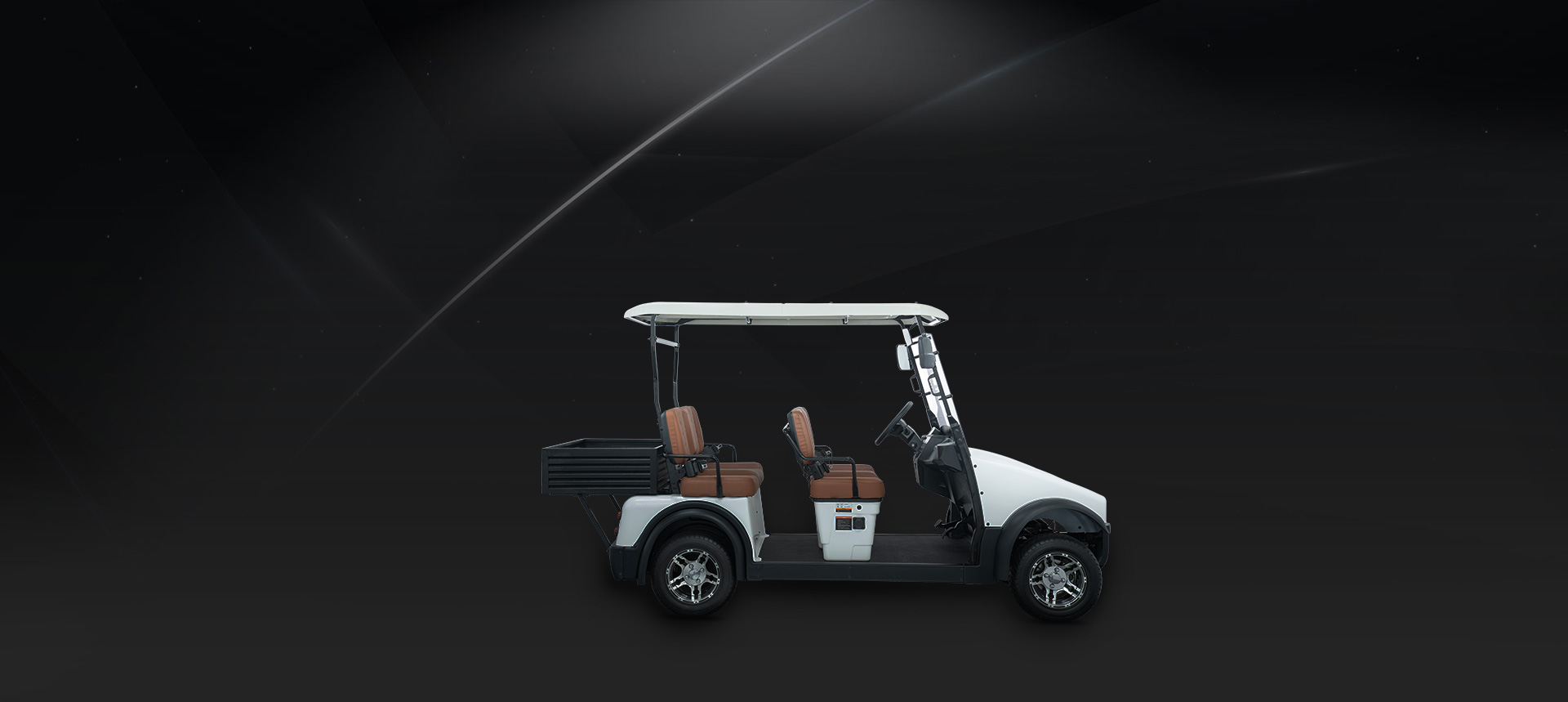

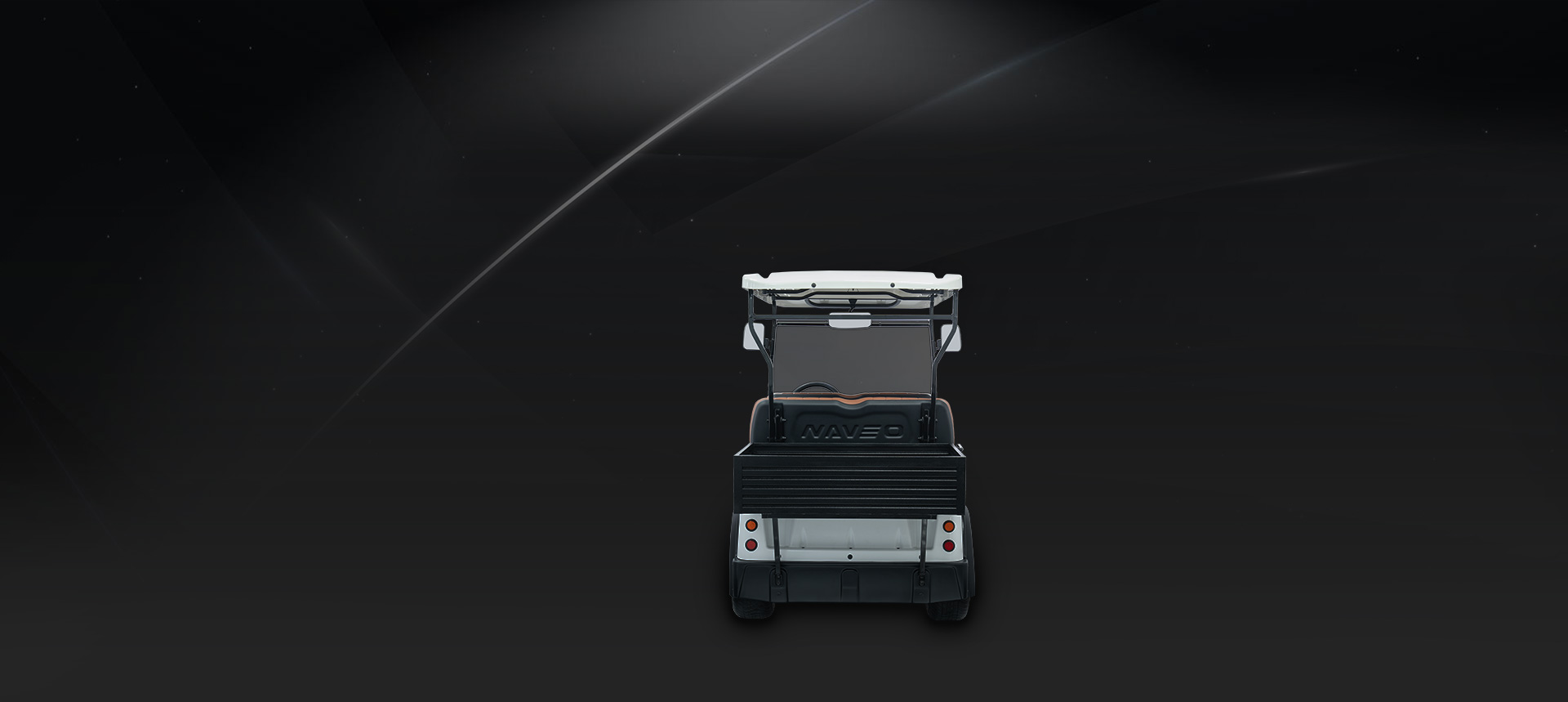

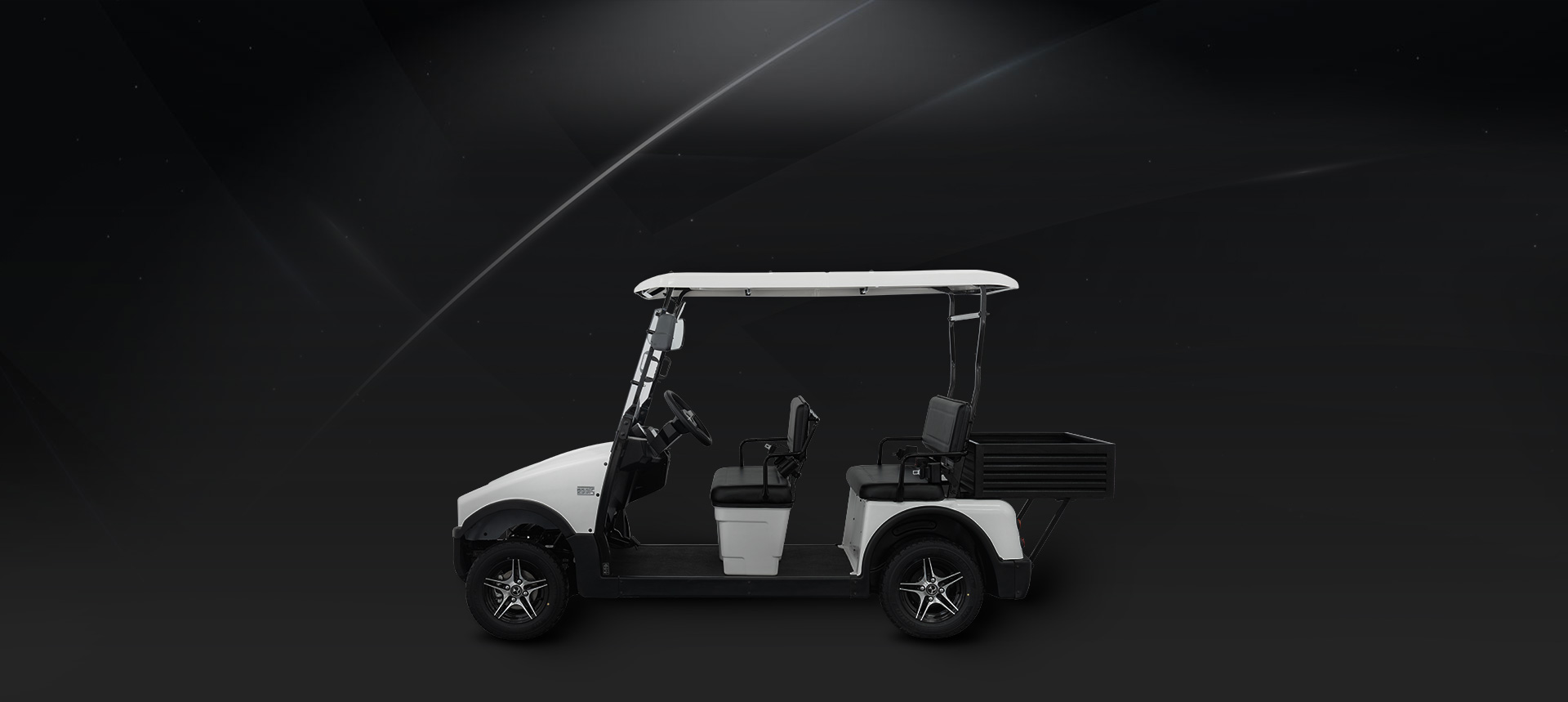

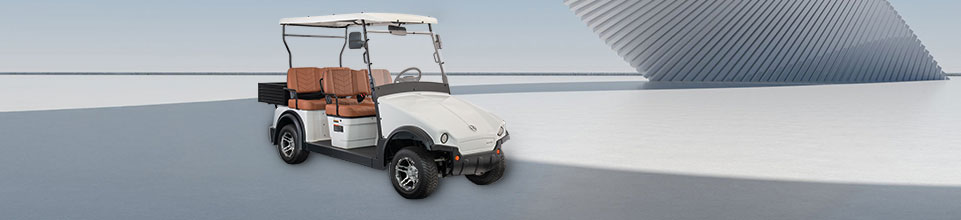

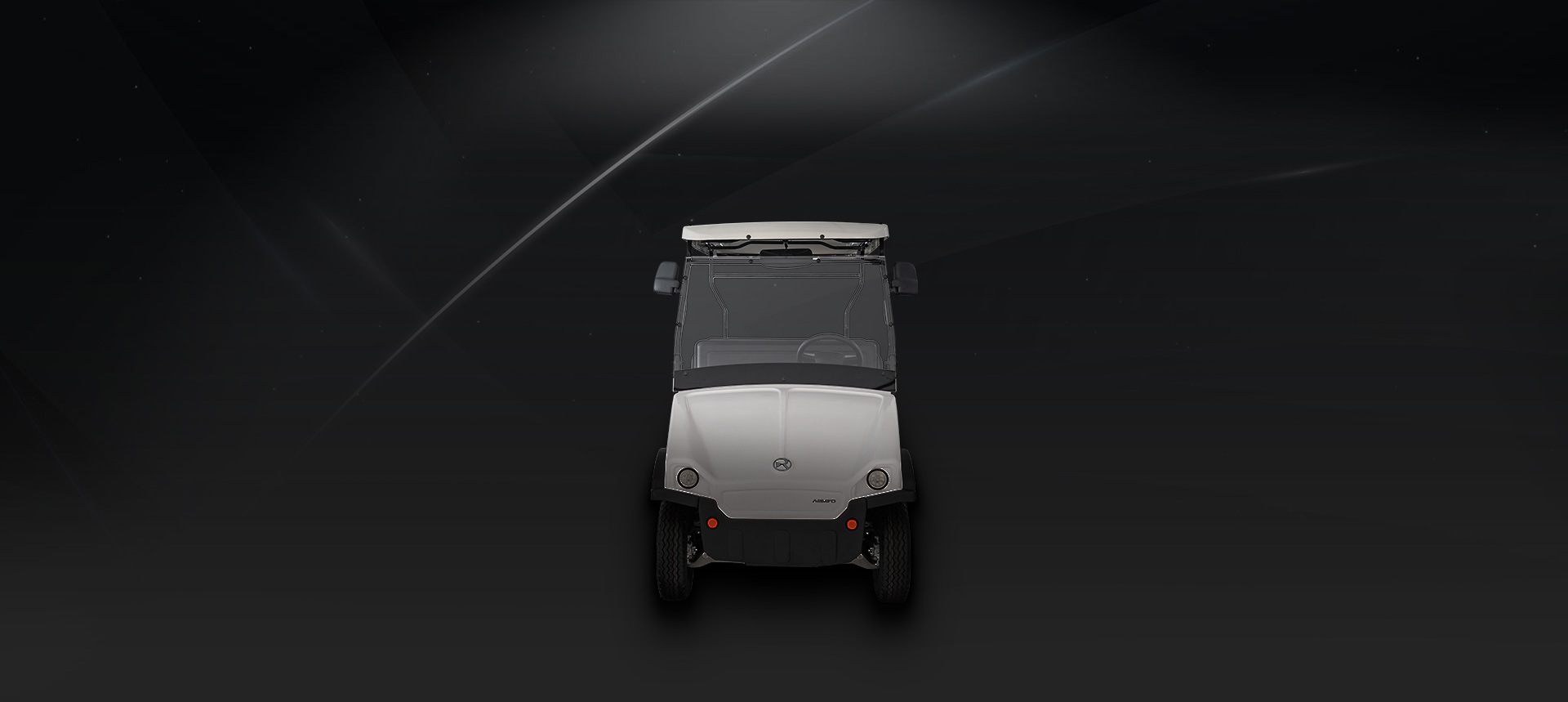

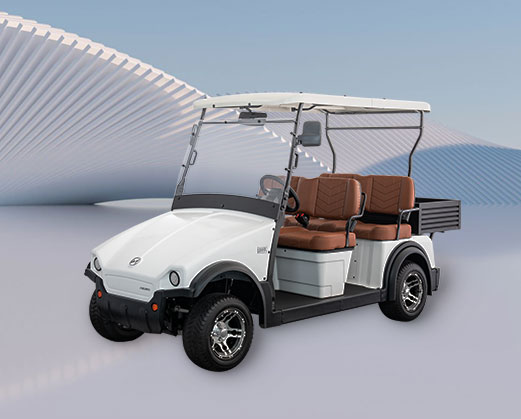

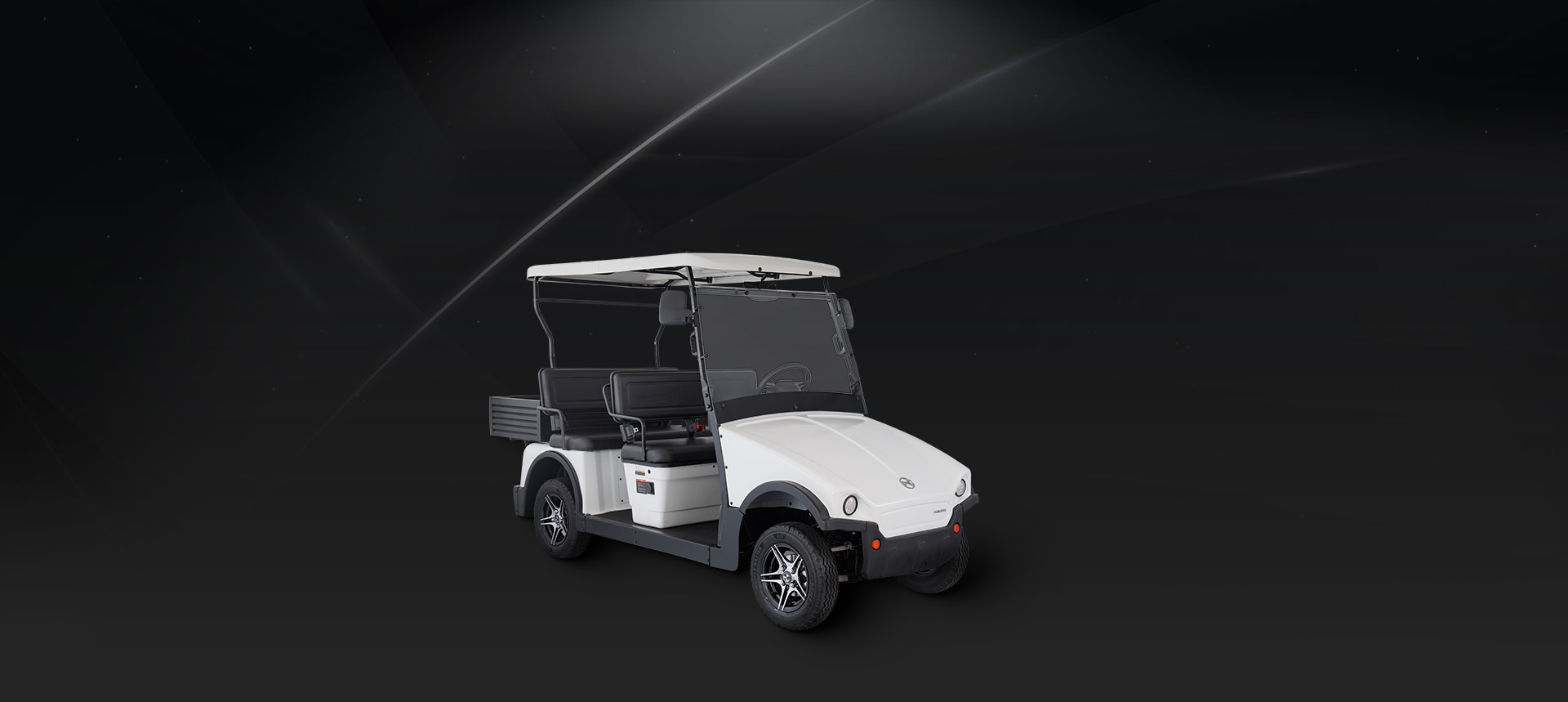

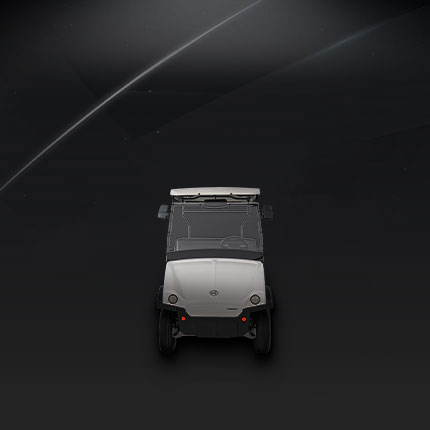

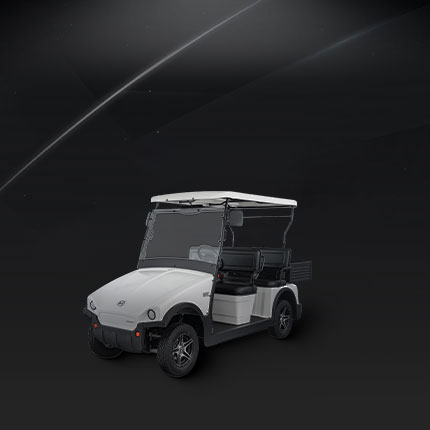

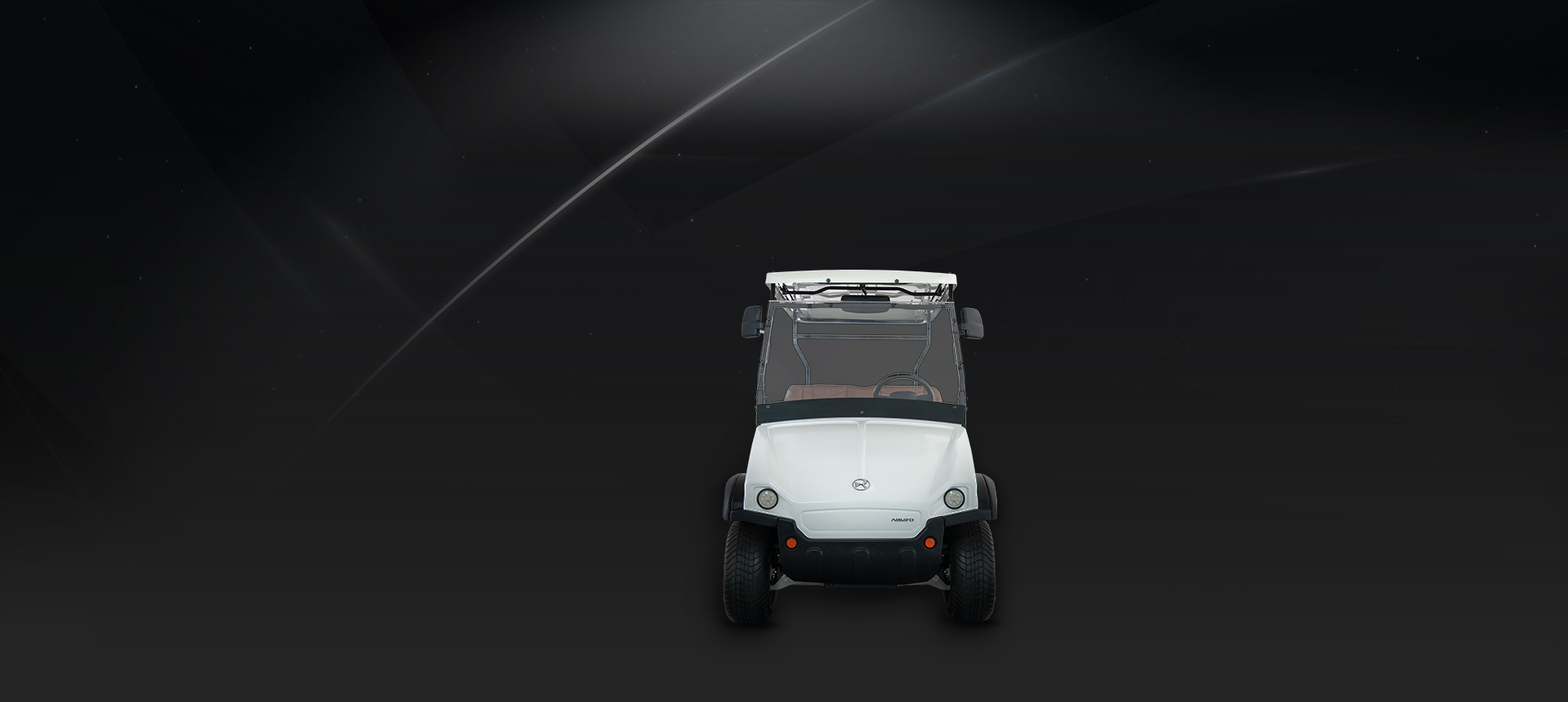

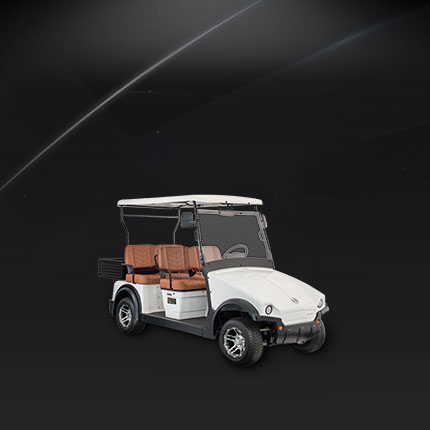

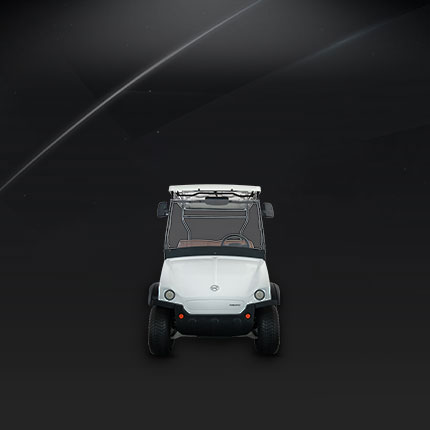

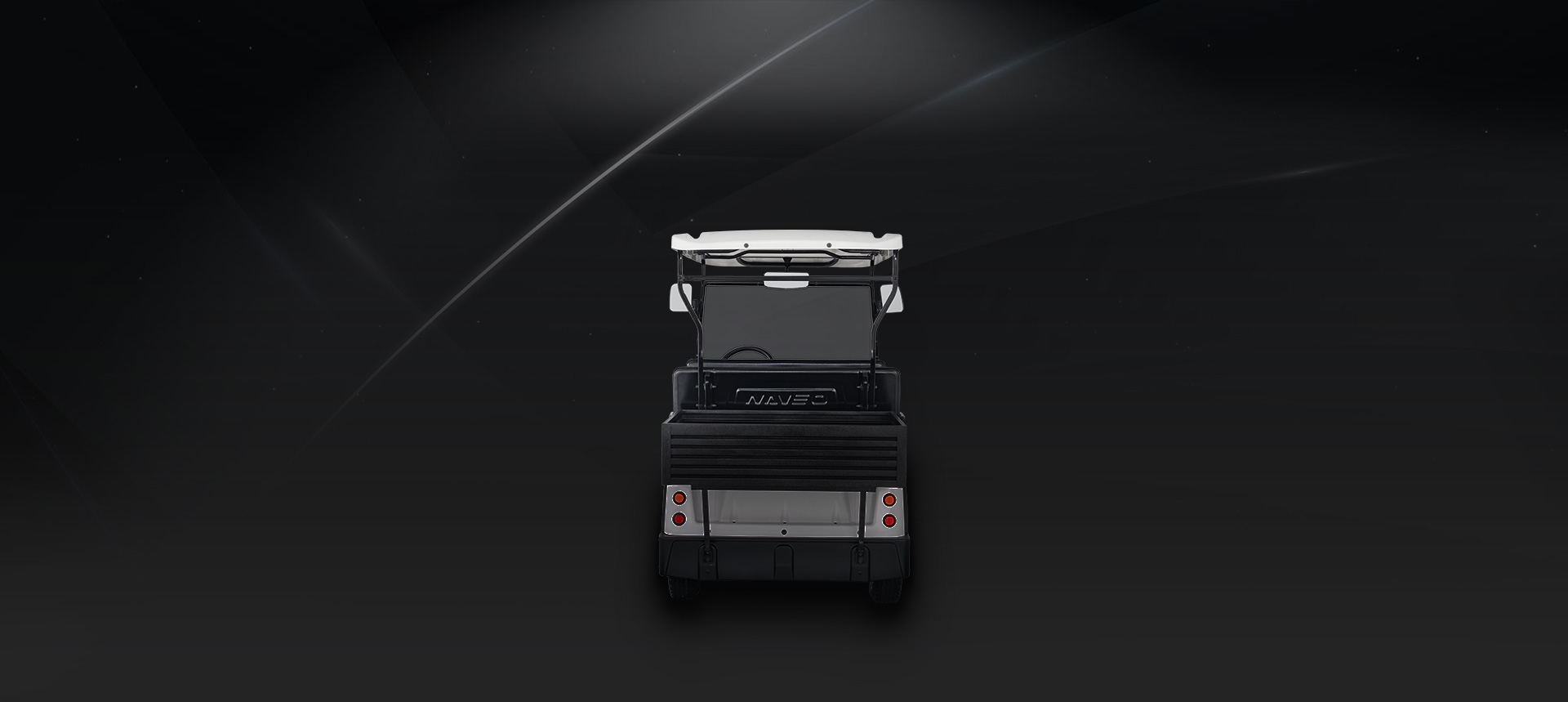

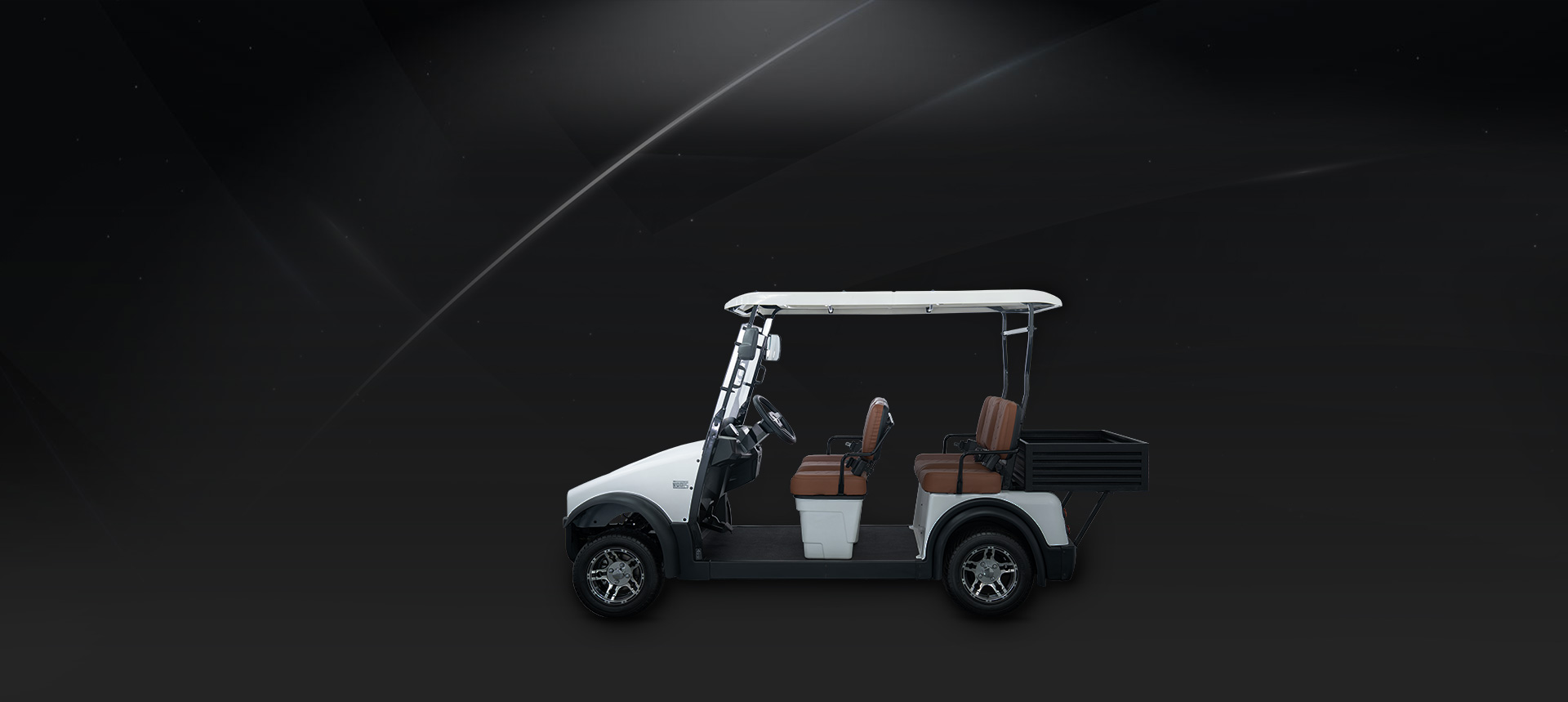

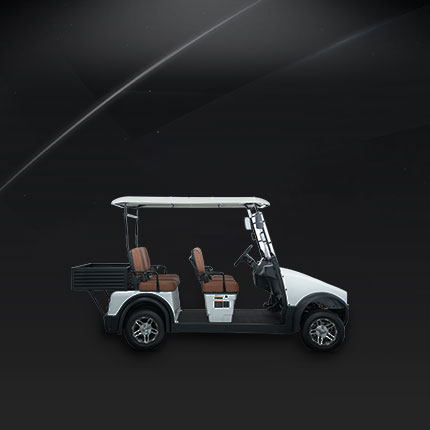

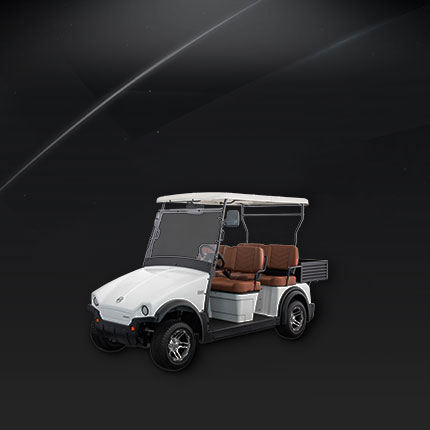

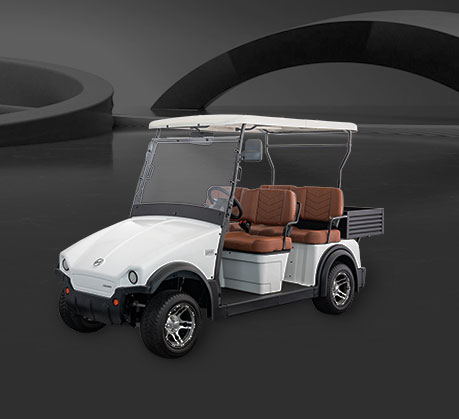

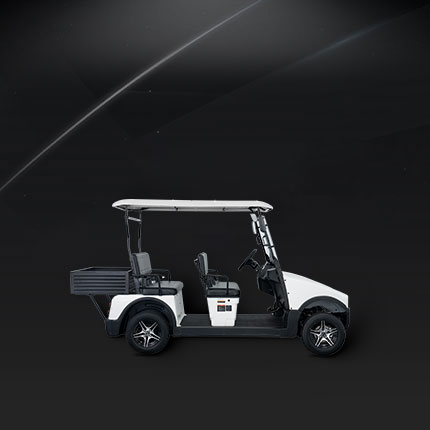

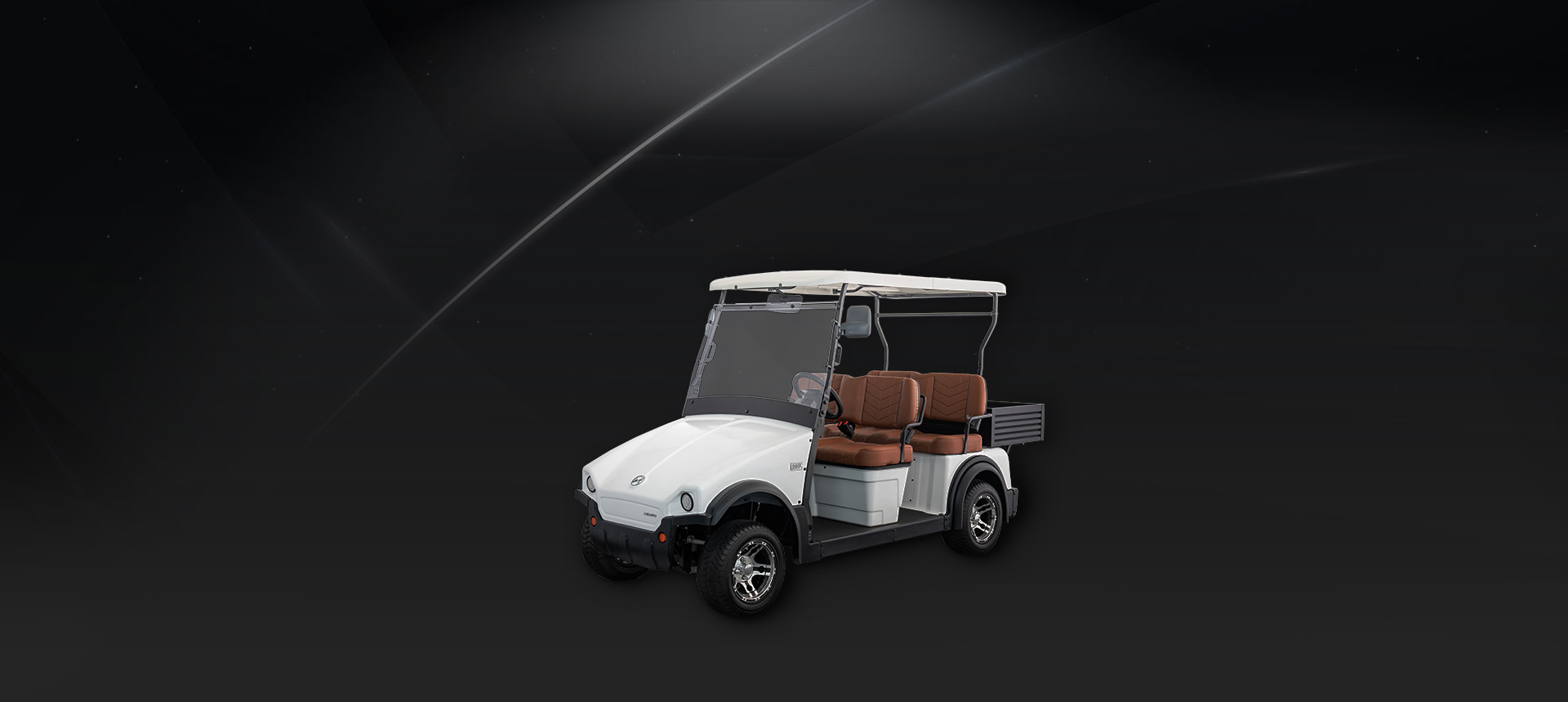

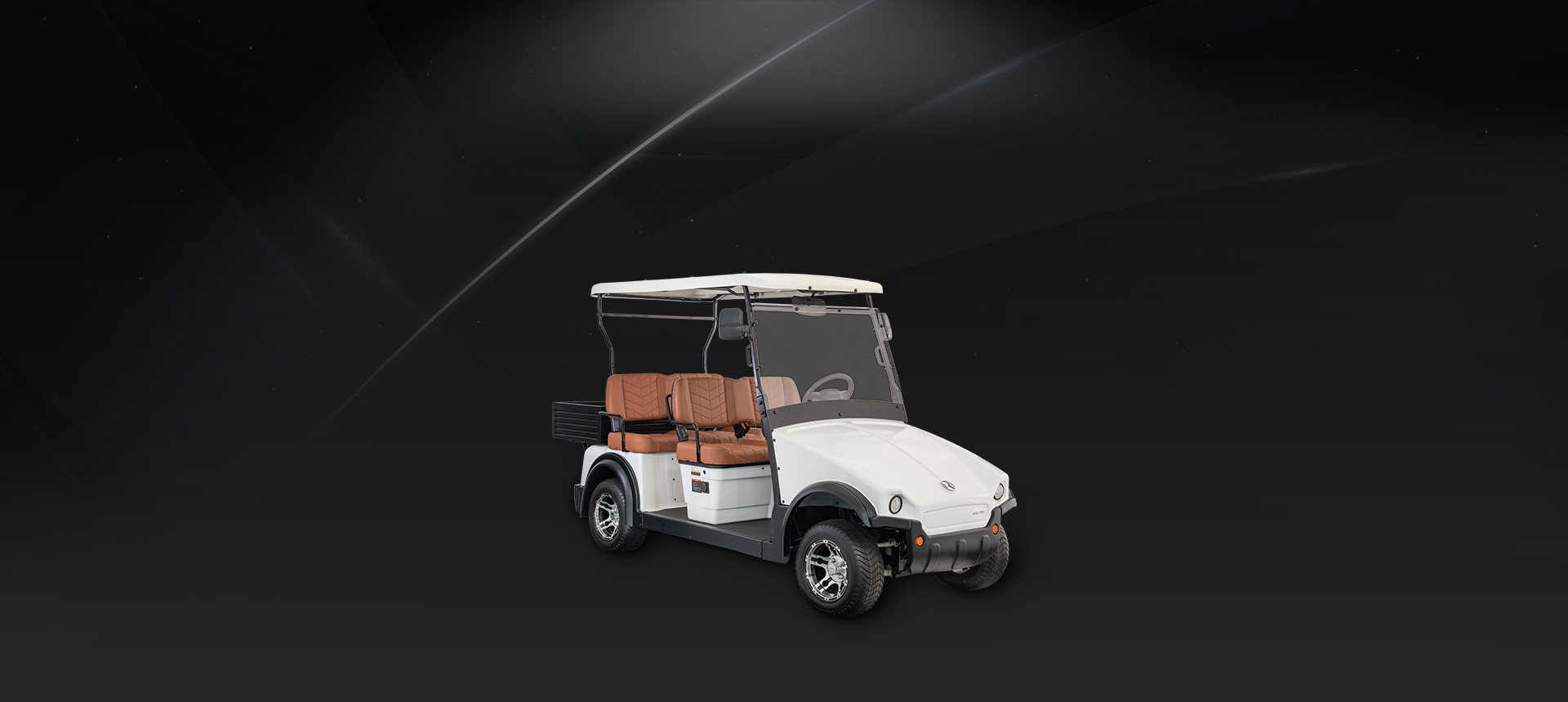

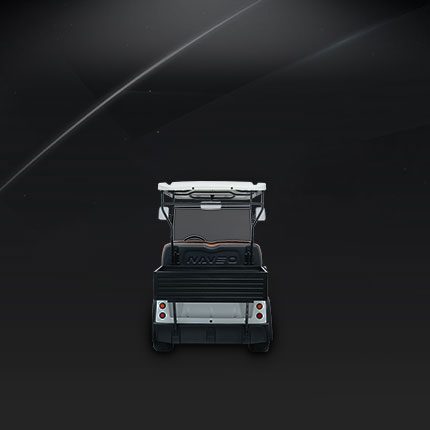

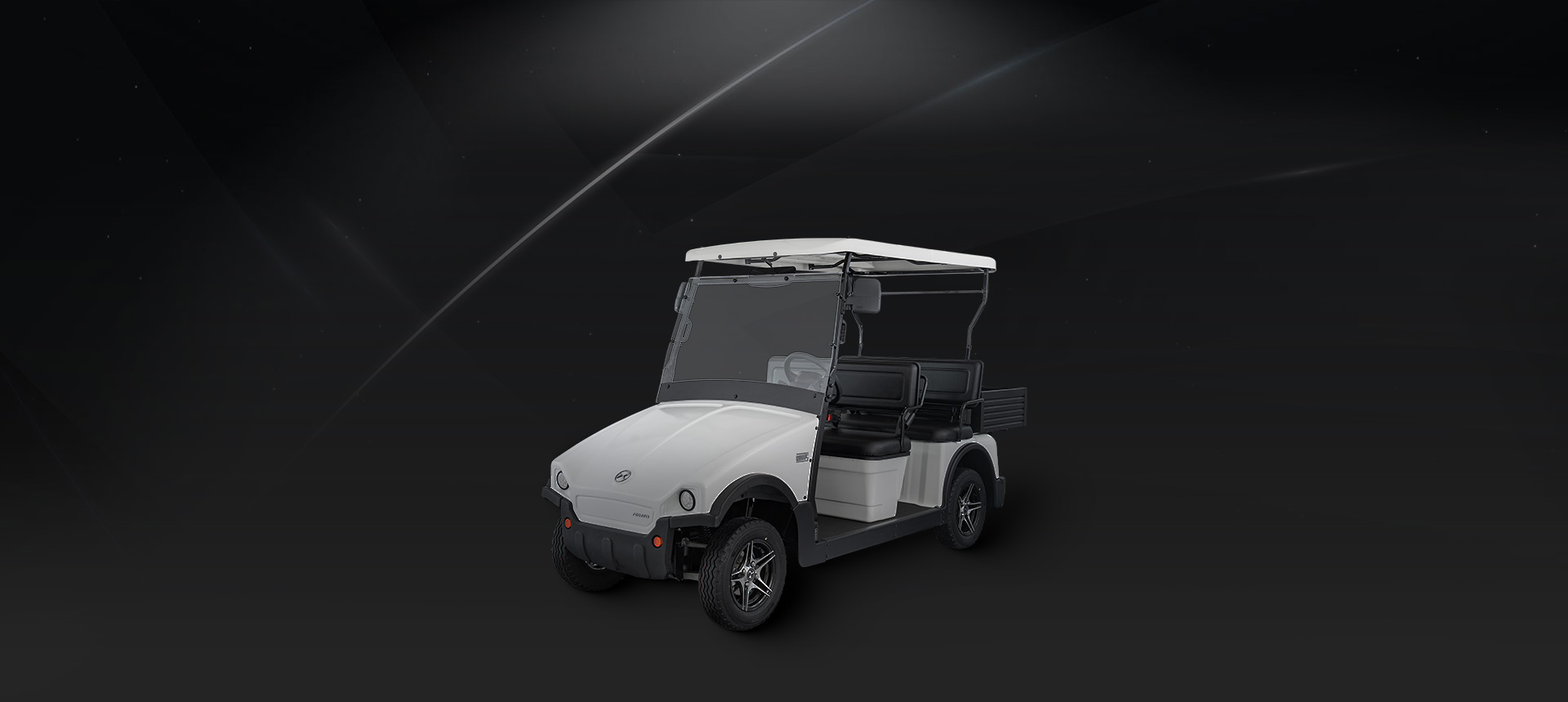

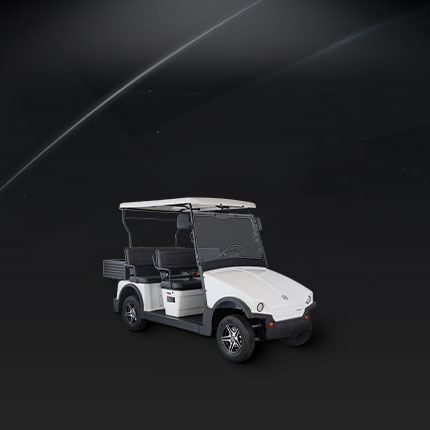

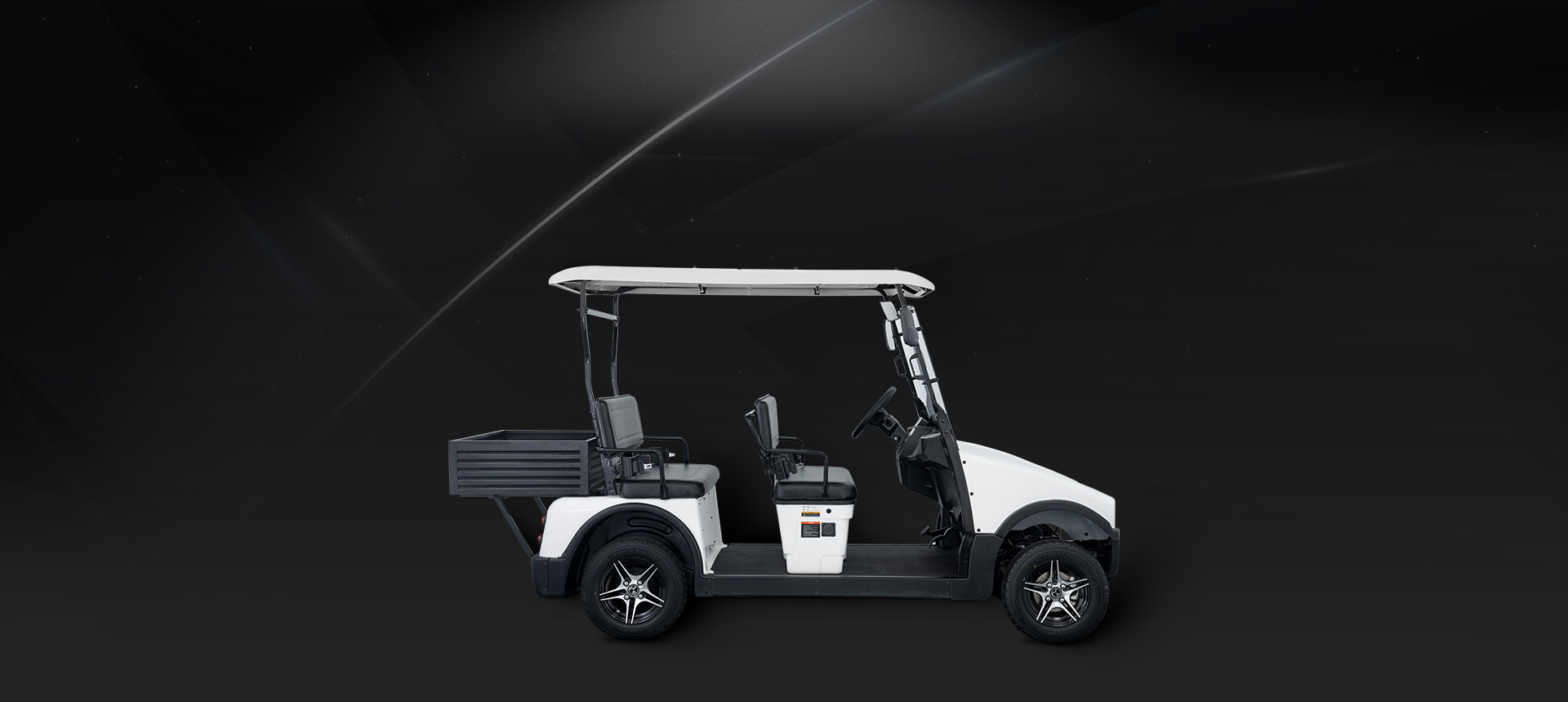

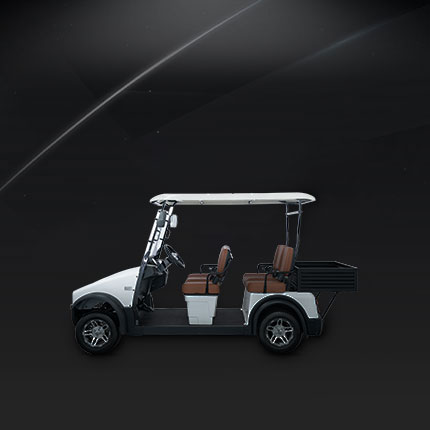

The compact cargo passenger model comes with (4 seats/all forward) and a mini cargo space for your baggage / belongings. Their crucial role of carrying passengers and cargo makes it an ideal choice for short shuttle service.
Explore the expansive line of pure electric vehicles, ranging from 2 seater to 8 seater, passengers models to utility models with its superior material construction, Robust suspension, regenerative braking & exceptional handlings makes it serve versatile applications. NAVEO’s elaborate add ons like Alloy wheels, cargo boxes, mobile holders, cup holders, premium ergonomic seats, wider / broad wheels, cozy dashboard, makes it stand out from crowd.
The paddle helps the user gauge the selected direction intuitively. Easy to handle.

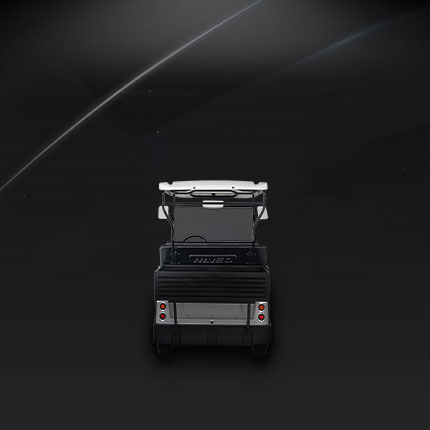

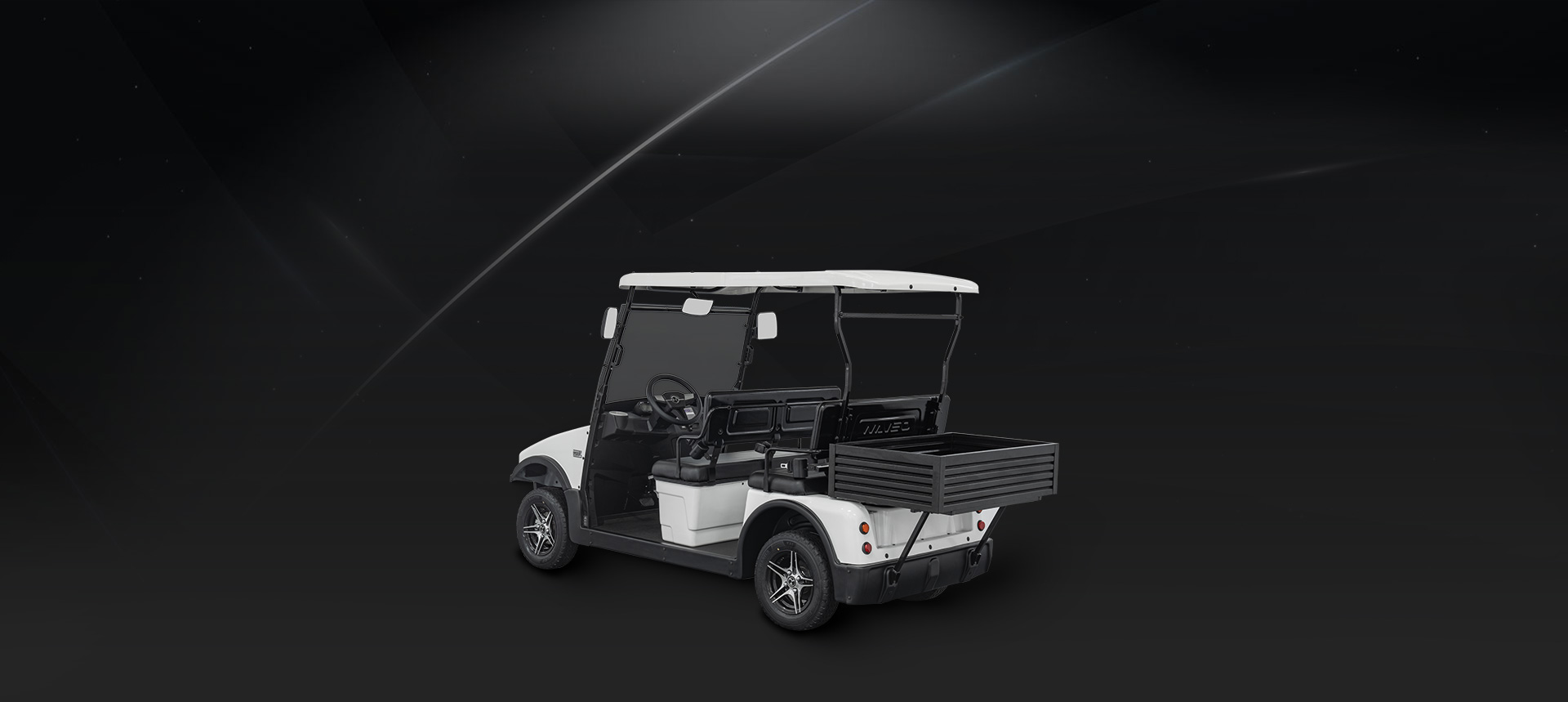

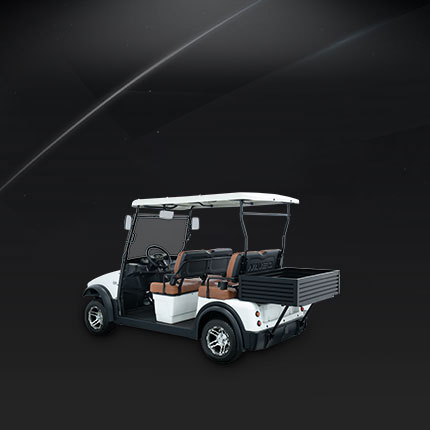

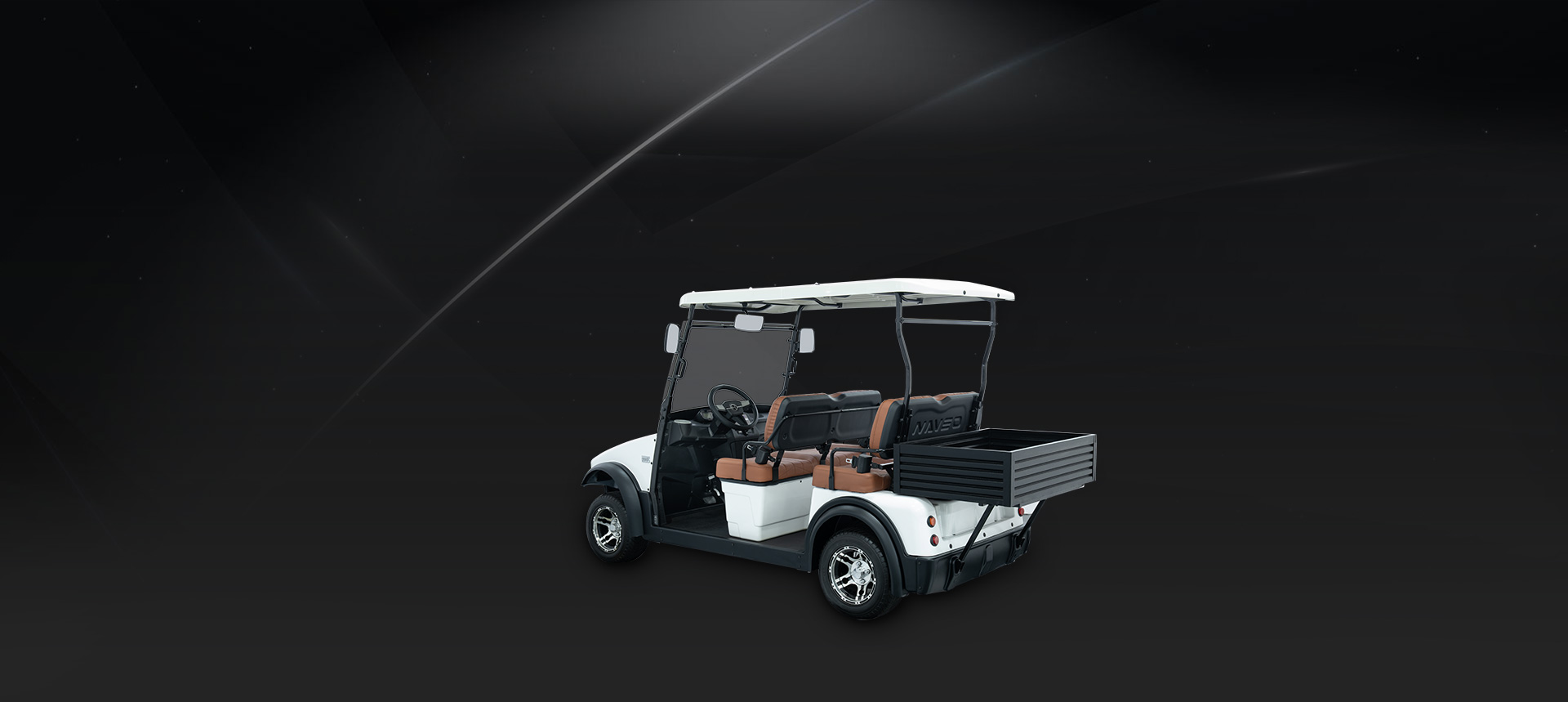

Designed for efficiency and practicality, this cargo box provides convenience and versatility for anyone requiring additional storage capacity while on the move.
Regenerative braking uses the kinetic energy to charge the battery (which is otherwise wasted through braking) by using the motor as a generator.
Compact cup holders designed for secure beverage storage in vehicles, golf carts, or workstations. Durable and easy to clean, they prevent spills and keep drinks within reach.
Electric power steering/
LSV compliant/
4-wheel hydraulic brakes/
AC drive motor
Minimalist design with modern seats along with smaller wheels & limited cargo space for smoother ride.
SEATING CAPACITY
4
MOTOR
3 Phase AC Induction Motor with EM brake
HORSE POWER (hp)
6.7
OUTPUT RATING (kW)
5
MOTOR CONTROL UNIT (A)
350
TREAD - FRONT AND REAR
Symmetric tread with P825 Pattern
LENGTH x WIDTH x HEIGHT
3510 mm x 1251 mm x 1930 mm
DRY WEIGHT (kg)
555
WHEELBASE (mm)
2165
TYRE SIZE (mm)
145/80-R12
GROUND CLEARANCE (mm)
156
FRAME
Ladder-style steel frame
STEERING
Self-compensating double reduction helical rack-and-pinion gear box
DRIVE TYPE
LHD and RHD options available
SUSPENSION
Hydraulic shock absorbers
PARK BRAKE
Auto Electromagnetic
MAX SPEED (km/h)
25
GRADEABILITY (%)
20
MINIMUM TURNING RADIUS (m)
4.8
VEHICLE LOAD CAPACITY (kg)
550
BATTERY CONTROLLER (A)
350
CHARGER
On Board Charger
WIRING KIT TYPE
Lead Acid / Lithium-ion
Click here to download full technical specification
Download
White
Blue
Rally Red
Burnt Crimson
Black
Looking for more details about our in-campus electric vehicles? Below are answers to the most common questions we receive...
